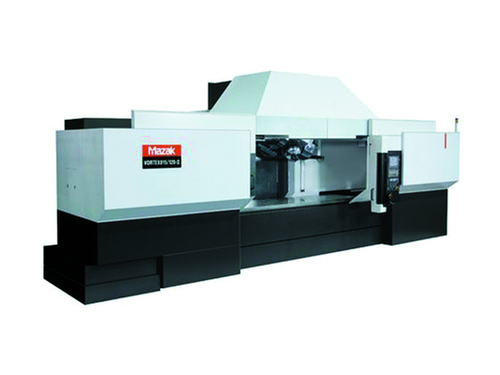

Mazak VORTEX 815/120-II
Technical specs
- X travel
- 3048 mm
- Y travel
- 810 mm
- Z travel
- 610 mm
- Spindle power
- 37.3 kW
- Spindle speed
- 10000 rpm
- Number of axes
- 5
- Tool magazine
- 30
- Spindle taper
- BT50
- Table width
- 810 mm
- Table length
- 3240 mm
- Dimensions
- 8405x4395x3050 mm
- Max RPM
- 10000 rpm
Values are for standard equipment; the machine in a company record may differ.
Sources: mazakusa.com · mazak.com
Description
Mazak Vortex 815/120-II is a 5-axis vertical machining center. It has a travel range of 3048 mm on the X axis, 810 mm on the Y axis, and 610 mm on the Z axis. It operates with a 37.3 kW motor power and a 10000 rpm spindle speed with a BT50 taper; it offers a 30-tool capacity magazine and table dimensions of 810x3240 mm.
This description was compiled automatically from public manufacturer sources; it makes no price or lead-time promise. This text was translated automatically.
machinaX.co Editor’s Note
As a more compact version of the 1400/160-II, the Vortex 815/120-II suits mid-to-large 5-axis parts with a 3048 mm X-axis and an 810x3240 mm table. Its BT50 taper and 30-position magazine are standard for this family. At 8405x4395x3050 mm overall, plan the installation footprint in advance.
This is the platform's statement, not information from the companies. This text was translated automatically.
