Yama Seiki AF-510
Technical specs
- X travel
- 510 mm
- Y travel
- 400 mm
- Z travel
- 330 mm
- Table width
- 400 mm
- Table length
- 610 mm
- Spindle power
- 5.5 kW
- Spindle speed
- 12000 rpm
- Control unit
- FANUC 0i-MD
Values are for standard equipment; the machine in a company record may differ.
Description

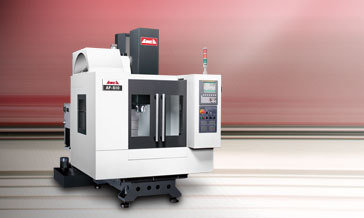

Yama Seiki AF-510 vertical machining center; has a travel range of 510 mm on the X axis, 400 mm on the Y axis, and 330 mm on the Z axis. It is equipped with a 400x610 mm table size, 5.5 kW motor power, and a 12000 rpm spindle speed. It is controlled by a Fanuc 0i-MD control unit.
This description was compiled automatically from public manufacturer sources; it makes no price or lead-time promise. This text was translated automatically.
Control unit
1 recordThe control unit used on this machine.
machinaX.co Editor’s Note
The 510x400 mm travel and 400x610 mm table make this the smallest model in the series, and the 330 mm Z-axis is limited too. At 5.5 kW, the motor is notably lower-powered than the other AF models' 18.6 kW. It carries a Fanuc 0i-MD control; the high 12000 rpm spindle suits small, precision work, but check the Z-axis for deep mold cavities.
This is the platform's statement, not information from the companies. This text was translated automatically.
