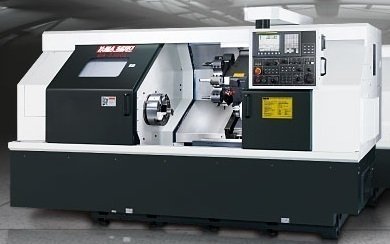

Yama Seiki GA-3300L
Technical specs
- Swing over bed
- 600 mm
- Turning diameter
- 500 mm
- Chuck size
- 305 mm
- Bar capacity
- 90 mm
- Machining length
- 900 mm
- Spindle power
- 18.6 kW
- Max RPM
- 3000 rpm
- Number of axes
- 2
- Weight
- 6985 kg
- Tailstock
- evet
- Dimensions
- 4305x2020x1910 mm
- Control unit
- FANUC 0i-TC
Values are for standard equipment; the machine in a company record may differ.
Description
Yama Seiki GA-3300L CNC lathe offers a swing over bed of 600 mm and a turning diameter of 500 mm. With a chuck diameter of 305 mm, a bar capacity of 90 mm, and a machining length of 900 mm, the machine can perform 2-axis machining, featuring a motor power of 18.6 kW and a maximum spindle speed of 3000 rpm. Equipped with a Fanuc 0i-TC control unit, the lathe includes a tailstock and weighs 6985 kg.
This description was compiled automatically from public manufacturer sources; it makes no price or lead-time promise. This text was translated automatically.
Control unit
2 recordsThe control unit used on this machine.
machinaX.co Editor’s Note
The Yama Seiki GA-3300L offers one of the larger bar capacities in the GA-3000 line, at 90 mm, for bar-fed production. Its 900 mm machining length and tailstock support mid-length shaft parts. At 6,985 kg with 4305x2020x1910 mm overall dimensions, floor space should be planned accordingly.
This is the platform's statement, not information from the companies. This text was translated automatically.
