Yama Seiki GA-3600L
Technical specs
- Swing over bed
- 600 mm
- Turning diameter
- 500 mm
- Chuck size
- 381 mm
- Bar capacity
- 105 mm
- Machining length
- 900 mm
- Spindle power
- 22.4 kW
- Max RPM
- 2500 rpm
- Number of axes
- 2
- Weight
- 6985 kg
- Tailstock
- evet
- Dimensions
- 4320x2030x1905 mm
- Control unit
- FANUC 0i-TC
Values are for standard equipment; the machine in a company record may differ.
Description

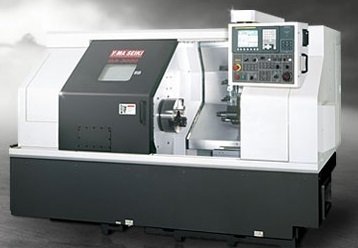

Yama Seiki GA-3600L CNC lathe offers a 600 mm swing over bed and a 500 mm turning diameter. With a 381 mm chuck diameter, 105 mm bar capacity, and 900 mm machining length, it operates with a 22.4 kW motor power and a maximum speed of 2500 rpm. This 2-axis machine is equipped with a Fanuc 0i-TC control unit.
This description was compiled automatically from public manufacturer sources; it makes no price or lead-time promise. This text was translated automatically.
Control unit
2 recordsThe control unit used on this machine.
machinaX.co Editor’s Note
The Yama Seiki GA-3600L handles larger bar stock than the GA-3300L, with a 105 mm bar capacity versus 90 mm. Its 900 mm machining length and tailstock support mid-length parts. At 6,985 kg with 4320x2030x1905 mm dimensions, it is nearly identical in footprint to the GA-3300L.
This is the platform's statement, not information from the companies. This text was translated automatically.
